Train Landscape 3D Viewer

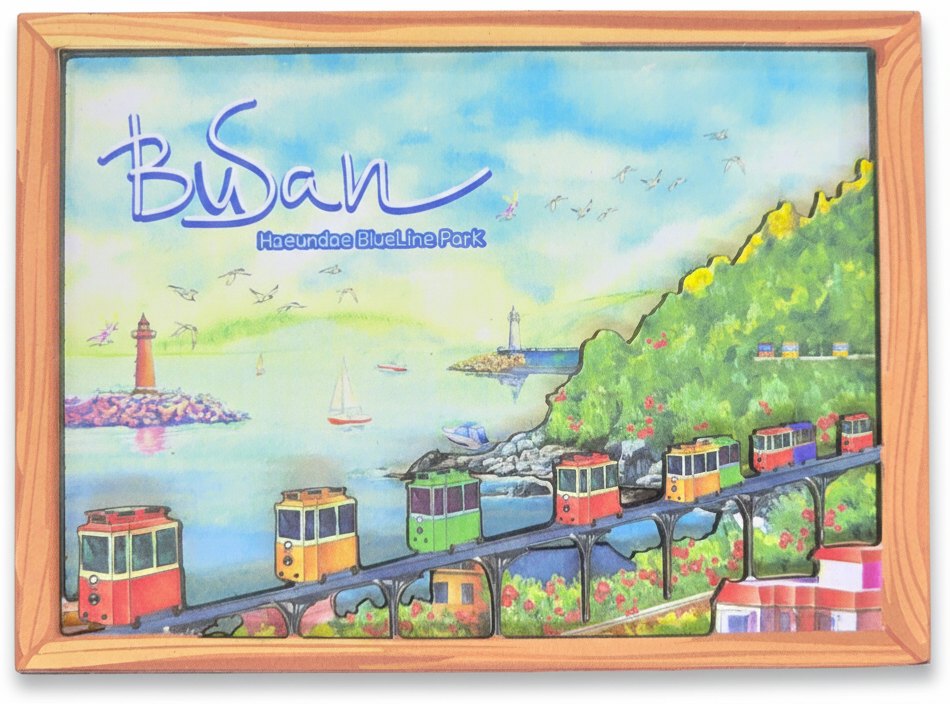

Rotate the source-layer train landscape wood magnet draft

This page loads the GLB generated from the newly supplied Layer 1 / Layer 2 / Layer 3 PNGs. The previous reusable fixed-bezel structure is disabled for this draft; each visible layer image is treated as a 3mm MDF layer with side-wall support and then assembled with the 1mm back magnet.

Preparing 3D viewer...
Loading 3D model...
RotateZoomFrontBackPackaging

What to test

Rotate with mouse drag or touch drag.

Zoom with wheel or pinch.

Check that Layer 1 / Layer 2 / Layer 3 are visible as separate 3mm boards from angled and side views.

Check that the front wood frame comes from the supplied Layer 3 image, not from a separate fixed bezel model.

Check that Layer 2 / Layer 3 side-wall supports follow their visible PNG alpha boundaries.

Check the dark MDF side material on each support and the visible layer seams.

Check that the back magnet is thinner than the wood layers.

Draft layer structure

Layer 3 Front Wood: supplied wood frame + train/rail foreground image extruded as a 3mm MDF cut layer

Layer 2 Middle Wood: supplied mountain/rail midground image extruded as a 3mm MDF cut layer

Layer 1 Back Wood: 3mm full background board

Back Magnet: 1mm

Total: 10mm

This draft removes the fixed bezel model and directly extrudes the supplied split PNG layers. Future source-layer model tests can replace the three PNGs while keeping the public viewer unchanged.

Draft limitation

This is a browser-test GLB for rotation, relief-layer, and source-layer support inspection. Modeling generation is handled as an offline tool workflow; the public site should use the completed GLB viewer only. This pass uses the supplied PNG alpha boundaries instead of automatic cutline invention.
